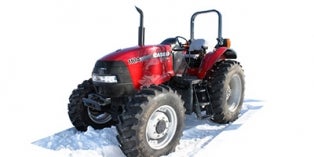

2014 Case IH Farmall® 100A-Series 110A with ROPS 4WD

2014 Case IH Farmall® 100A-Series 110A with ROPS 4WD Specifications

Tractor Insurance Get an insurance quote
Model Type  Utility
MSRP (US)  $55,676
Warranty   Months
Finance  Get a quote
hide Identification:
Family Name  Farmall
Generic Type  Utility
Manufacturer Country  USA
Revision Status  Carryover
Competitor Code  TRC14UY0000
Introduction Year  2012
IsEmbargoed  No
IsPrelim  No
IsCurrent  Yes
Parent Company  CNH Global
Display Name  Farmall® 100A Series 110A with ROPS 4WD
hide Engine:
Engine Brand Name  FPT
Cylinders  4
Horsepower  110 / 82
Horsepower RPM  2200
Cooling  Liquid
Bore  104 / 4.09
Stroke  132 / 5.2
Displacement  4.5
Fuel Type  Diesel
Engine Model Code  4.5L
Aspiration  Turbocharged
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Power Synchro-Shift
Number Of Speeds  8 / 8
Maximum Forward Speed  18.4 / 29.6
Clutch Type  Dry
Number of Ranges  2
hide Hydraulic System:
Hydraulic Type  Open Center
Pump Capacity  31 / 117
Steering Pump Output  9 / 34
Implement Pump Output  22 / 83
Number of Standard Remote Valves  2
Number of Optional Remote Valves  2
Rear 3-Point Hitch Category  Category 2
Rear 3-Point Hitch Lift Capacity  7200 / 3266
hide Pto:
PTO Type  Independent
PTO Horsepower  90 / 67
PTO Location  Rear
Rear PTO RPM  540 / 1000
hide Technical Specifications:
Length  13.45
Width  98 / 2489
Height  115.6 / 2937
Wheelbase  99.2 / 2520
Length (ft/ft)  13
Length (ft/in)  5.4
Dry Weight  8642 / 3920
Fuel Capacity  40 / 150
hide Wheels & Tires:
Wheels Composition  Steel
Front Tire Diameter  24
Rear Tire Diameter  34
Front Tire Width  14.9
Rear Tire Width  18.4
Front Tire  14.9 x 24 R1
Rear Tire  18.4 x 34 R1
Tread Type  Agricultural
hide Brakes:
Front Brake Type  Wet Disc
Rear Brake Type  Wet Disc
hide Instrumentation:
Tachometer  Standard
Hour Meter  Standard
Fuel Level Warning Type  Gauge
hide Drive Line:
Driveline Type  4X4
Differential Lock Location  Rear
hide Steering:
Steering Type  Power
hide Exterior:
Platform Layout  Open
ROPS  Standard
Headlights  Standard
