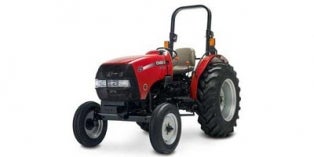

Print 2014 Case IH Farmall® A-Series 45A 4WD

User Rating Tractor.com 150 of 211
Utility

User Rating
View all Reviews

2014 Case IH Farmall® A-Series 45A 4WD

2014 Case IH Farmall® A-Series 45A 4WD Specifications

Tractor Insurance Get an insurance quote
Model Type  Utility
MSRP (US)  $25,086
Warranty   Months
Finance  Get a quote
hide Identification:
Family Name  Farmall
Generic Type  Utility
Manufacturer Country  USA
Revision Status  Carryover
Competitor Code  TRC14UB0000
IsEmbargoed  No
IsWIP  No
IsPrelim  No
IsCurrent  Yes
Historical ID  141706
Parent Company  CNH Global
Display Name  Farmall® A Series 45A 4WD
hide Engine:
Engine Brand Name  Shibaura
Cylinders  4
Horsepower  45 / 33.5
Horsepower RPM  2700
Cooling  Liquid
Bore  84 / 3.31
Stroke  100 / 3.94
Displacement  2.2
Fuel Type  Diesel
Engine Model Code  N844L
Aspiration  Natural
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Synchro-Shift
Number Of Speeds  8 / 8
Maximum Forward Speed  19.2 / 30.9
Clutch Type  Dry
Number of Ranges  2
hide Hydraulic System:
Hydraulic Type  Open Center
Pump Capacity  16.9 / 64.1
Steering Pump Output  5.3 / 20.1
Implement Pump Output  11.6 / 44
Number of Standard Remote Valves  1
Number of Optional Remote Valves  1
Rear 3-Point Hitch Category  Category 1 / 2
Rear 3-Point Hitch Lift Capacity  1830 / 830
hide Pto:
PTO Type  Independent
PTO Horsepower  39 / 29
PTO Location  Rear
Rear PTO RPM  540
hide Technical Specifications:
Length  11.12
Width  66.1 / 1680
Height  93.9 / 2385
Wheelbase  77.16 / 1960
Length (ft/ft)  11
Length (ft/in)  1.5
Dry Weight  3836 / 1740
Fuel Capacity  13.5 / 51
hide Wheels & Tires:
Wheels Composition  Steel
Front Tire Diameter  24
Rear Tire Diameter  28
Front Tire Width  8.3
Rear Tire Width  13.6
Front Tire  8.3 x 24
Rear Tire  13.6 x 28
Tread Type  Agricultural
hide Brakes:
Front Brake Type  Wet Disc
Rear Brake Type  Wet Disc
hide Instrumentation:
Tachometer  Standard
Hour Meter  Standard
Fuel Level Warning Type  Gauge
hide Drive Line:
Driveline Type  4X4
Differential Lock Location  Rear
hide Steering:
Steering Type  Power
hide Exterior:
Platform Layout  Open
ROPS  Standard
Headlights  Standard
hide Heater & Cooler:
Air Conditioning  Standard
Heater  Standard
