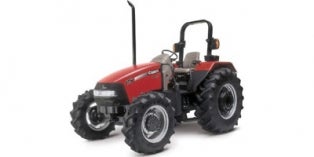

2014 Case IH Farmall® V-Series 105V with ROPS

2014 Case IH Farmall® V-Series 105V with ROPS Specifications

Tractor Insurance Get an insurance quote
Model Type  Utility
MSRP (US)  $53,125
Warranty   Months
Finance  Get a quote
hide Identification:
Family Name  Farmall
Generic Type  Utility
Manufacturer Country  USA
Revision Status  Carryover
Competitor Code  TRC14UY0000
Introduction Year  2013
IsEmbargoed  No
IsPrelim  No
IsCurrent  Yes
Parent Company  CNH Global
Display Name  Farmall® 105V with ROPS
hide Engine:
Engine Brand Name  FPT
Cylinders  4
Horsepower  106 / 79
Horsepower RPM  2300
Cooling  Liquid
Bore  104 / 4.09
Stroke  132 / 5.2
Displacement  4.5
Fuel Type  Diesel
Engine Model Code  4.5 L
Aspiration  Turbocharged
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Synchro-Shift
Number Of Speeds  16 / 16
Maximum Forward Speed  18.73 / 30.14
Clutch Type  Dry
Number of Ranges  4
hide Hydraulic System:
Hydraulic Type  Open Center
System Pressure  2610 / 180
Pump Capacity  26.4 / 99.9
Steering Pump Output  9.2 / 34.8
Implement Pump Output  17.2 / 65
Number of Standard Remote Valves  2
Number of Optional Remote Valves  1
Rear 3-Point Hitch Category  Category 2
Rear 3-Point Hitch Lift Capacity  4045 / 1835
hide Pto:
PTO Type  Independent
PTO Horsepower  92 / 68.6
PTO Location  Rear
Rear PTO RPM  540
hide Technical Specifications:
Length  12.72
Width  42.5 / 1080
Height  88.6 / 2250
Wheelbase  85.8 / 2180
Turning Radius  34.2
Length (ft/ft)  12
Length (ft/in)  8.7
Dry Weight  5979 / 2712
Fuel Capacity  19.3 / 73
hide Wheels & Tires:
Wheels Composition  Steel
Front Tire Width  200
Front Tire Aspect Ratio  70
Front Wheel Diameter  16
Rear Tire Width  360
Rear Tire Aspect Ratio  70
Rear Wheel Diameter  24
Front Tire  200/70 R16
Rear Tire  360/70 R24
Tread Type  Agricultural
hide Brakes:
Front Brake Type  Wet Disc
Rear Brake Type  Wet Disc
hide Instrumentation:
Tachometer  Standard
Hour Meter  Standard
Fuel Level Warning Type  Gauge
hide Drive Line:
Driveline Type  4X4
Differential Lock Location  Rear
hide Steering:
Steering Type  Power
hide Exterior:
Platform Layout  Open
ROPS  Standard
Headlights  Standard
