Print 2012 John Deere 2000 Series 2720

User Rating Tractor.com 127 of 130
Compact Utility

User Rating
View all Reviews

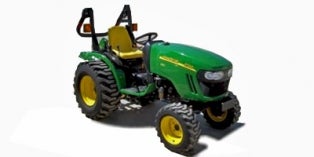

2012 John Deere 2000 Series 2720

2012 John Deere 2000 Series 2720 Specifications

Tractor Insurance Get an insurance quote
Model Type  Compact Utility
MSRP (US)  $18,141.00
Warranty   Months
Finance  Get a quote
hide Identification:
Family Name  2000 Series
Generic Type  Compact Utility
Manufacturer Country  USA
Revision Status  Carryover
Competitor Code  TRC12CE0000
Introduction Year  2008
IsEmbargoed  No
IsWIP  No
IsPrelim  No
IsCurrent  Yes
Historical ID  82253
Parent Company  Deere & Company
Display Name  2720
hide Engine:
Engine Brand Name  Yanmar
Cylinders  3
Horsepower  31.4 / 23.1
Horsepower RPM  2500
Torque  63 / 85.4
Cooling  Liquid
Bore  88 / 3.46
Stroke  90 / 3.54
Displacement  1.6
Compression Ratio  19.1:1
Fuel Type  Diesel
Engine Model Code  3TNV88
Aspiration  Natural
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Hydrostatic
Maximum Forward Speed  13.5 / 21.7
Clutch Type  Not Applicable
Number of Ranges  2
hide Hydraulic System:
Hydraulic Type  Open Center
System Pressure  2421 / 166.8
Pump Capacity  10.5 / 39.6
Steering Pump Output  5.5 / 20.8
Implement Pump Output  5 / 18.8
Number of Standard Remote Valves  2
Rear 3-Point Hitch Category  Category 1
Rear 3-Point Hitch Lift Capacity  1250 / 567
hide Pto:
PTO Type  Independent
PTO Horsepower  23.5 / 17.5
PTO Location  Rear / Mid
Rear PTO RPM  540
Mid PTO RPM  2100
hide Technical Specifications:
Length  9.08
Width  47.1 / 1196
Height  90 / 2279
Wheelbase  65.2 / 1655
Turning Radius  2.3
Ground Clearance  13 / 330
Front Tread Width  32.7 / 830
Length (ft/ft)  9
Length (ft/in)  1
Dry Weight  1973 / 895
Fuel Capacity  7.1 / 27
hide Wheels & Tires:
Wheels Composition  Steel
Front Tire Diameter  23
Front Tire Width  8.5
Front Wheel Diameter  12
Rear Tire Width  14
Rear Wheel Diameter  17.5
Front Tire  23 x 8.5 - 12
Rear Tire  14 - 17.5
Tread Type  Industrial
hide Brakes:
Front Brake Type  Wet Disc
Rear Brake Type  Wet Disc
hide Instrumentation:
Tachometer  Standard
Hour Meter  Standard
Fuel Level Warning Type  Gauge
hide Drive Line:
Driveline Type  4X4
Differential Lock Location  Rear
hide Steering:
Steering Type  Power
hide Exterior:
Platform Layout  Open
ROPS  Standard
Headlights  Standard
hide Convenience:
Cruise Control  Standard
