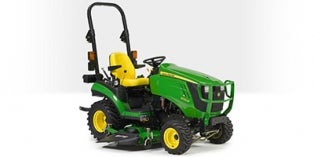

2013 John Deere 1-Series 1025R

2013 John Deere 1-Series 1025R Specifications

Tractor Insurance Get an insurance quote
Model Type  Compact Utility
MSRP (US)  $13,361.00
Warranty   Months
Finance  Get a quote
hide Engine:
Engine Brand Name  Yanmar
Cylinders  3
Horsepower  24.2 / 17.8
Fuel Type  Diesel
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Hydrostatic
Clutch Type  Not Applicable
hide Hydraulic System:
Hydraulic Type  Open Center
System Pressure  2000 / 137.88
Pump Capacity  6.3 / 24
Steering Pump Output  2.8 / 10.8
Implement Pump Output  3.5 / 13.2
Rear 3-Point Hitch Category  Category 1
Rear 3-Point Hitch Lift Capacity  681 / 309
hide Pto:
PTO Type  Independent
PTO Horsepower  18 / 13.4
hide Technical Specifications:
Width  47.3 / 1202
Wheelbase  57.1 / 1450
Ground Clearance  7.7 / 195
hide Brakes:
Front Brake Type  Wet Disc
Rear Brake Type  Wet Disc
