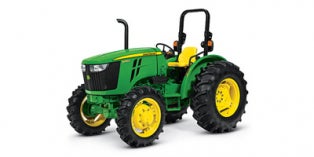

2020 John Deere 5E Series 5065E (2WD)
 |
22 |
of 251 Utility |
|
 |
- MSRP: $26,848
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2020 John Deere 5E Series 5065E (2WD) Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | $26,848 |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | 5 Series |
| Generic Type | Utility |
| Manufacturer Country | India |
| Revision Status | Carryover |
| Competitor Code | TRC20UE0000 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | Yes |
| Historical ID | 325866 |
| Parent Company | Deere & Company |
| Display Name | 5065E (2WD) |
|
Engine: |
|
| Engine Brand Name | John Deere |
| Cylinders | 3 |
| Horsepower | 67 / 50.4 |
| Horsepower RPM | 2100 |
| Torque | 177 / 240 |
| Torque RPM | 2100 |
| Cooling | Liquid |
| Bore | 106.5 / 4.19 |
| Stroke | 110 / 4.33 |
| Displacement | 2.9 |
| Compression Ratio | 17.2:1 |
| Fuel Type | Diesel |
| Engine Model Code | PowerTech 3029 |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Synchro-Shift |
| Transmission Brand | SyncShuttle™ |
| Number Of Speeds | 9 / 3 |
| Maximum Forward Speed | 17.4 / 28 |
| Clutch Type | Dry |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 18.2 / 68.9 |
| Steering Pump Output | 6 / 22.7 |
| Implement Pump Output | 11.5 / 43.5 |
| Number of Standard Remote Valves | 1 |
| Number of Optional Remote Valves | 2 |
| Rear 3-Point Hitch Category | Category 1 / 2 |
| Rear 3-Point Hitch Lift Capacity | 3192 / 1448 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 49 / 36.5 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 11.94 |
| Width | 57.2 / 1453 |
| Height | 99.5 / 2527.3 |
| Wheelbase | 80.7 / 2050 |
| Turning Radius | 3.2 |
| Ground Clearance | 18.8 / 480 |
| Length (ft/ft) | 11 |
| Length (ft/in) | 11.3 |
| Dry Weight | 4634 / 2102 |
| Fuel Capacity | 19 / 71.9 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 7.5 |
| Front Wheel Diameter | 16 |
| Rear Tire Width | 16.9 |
| Rear Wheel Diameter | 28 |
| Front Tire | 7.5 - 16 F2 |
| Rear Tire | 16.9 -28 R1 |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X2 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
|
Audio & Communication: |
|
| Number Of Discs | 0 |
