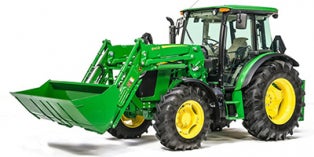

2020 John Deere 5M Series 5100M (2WD)
 |
35 |
of 251 Utility |
|
 |
- MSRP: $56,326
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2020 John Deere 5M Series 5100M (2WD) Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | $56,326 |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | 5 Series |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Major Revision Year | 2016 |
| Revision Status | Carryover |
| Competitor Code | TRC20UX0000 |
| Introduction Year | 2016 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | Yes |
| Historical ID | 326031 |
| Parent Company | Deere & Company |
| Display Name | 5100M (2WD) |
|
Engine: |
|
| Engine Brand Name | John Deere |
| Cylinders | 4 |
| Horsepower | 100 / 74.6 |
| Horsepower RPM | 2100 |
| Cooling | Liquid |
| Displacement | 4.5 |
| Fuel Type | Diesel |
| Engine Model Code | PowerTech PWL |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Power Synchro-Shift |
| Transmission Brand | PowrReverser™ |
| Number Of Speeds | 16 / 16 |
| Clutch Type | Wet |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 24.7 / 94 |
| Steering Pump Output | 6.3 / 24 |
| Implement Pump Output | 18.4 / 70 |
| Number of Standard Remote Valves | 0 |
| Number of Optional Remote Valves | 3 |
| Rear 3-Point Hitch Category | Category 1 / 2 |
| Rear 3-Point Hitch Lift Capacity | 4600 / 2100 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 85 / 63.4 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 13.58 |
| Height | 98.5 / 2502 |
| Wheelbase | 92.5 / 2350 |
| Turning Radius | 3.51 |
| Ground Clearance | 18.8 / 477.5 |
| Front Tread Width | 57.6 / 1463 |
| Rear Tread Width | 53.1 / 1348 |
| Length (ft/ft) | 13 |
| Length (ft/in) | 7 |
| Max Front Tread Width | 82.6 / 2098 |
| Max Rear Tread Width | 80.9 / 2054 |
| Dry Weight | 7500 / 3400 |
| Fuel Capacity | 30 / 114 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Tire Brand | Firestone |
| Front Tire Width | 11 |
| Front Wheel Diameter | 15 |
| Rear Tire Width | 460 |
| Rear Tire Aspect Ratio | 85 |
| Rear Wheel Diameter | 30 |
| Front Tire | Firestone: 11LL-15 F2 |
| Rear Tire | Firestone: 460/85R 30 R1W |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X2 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
