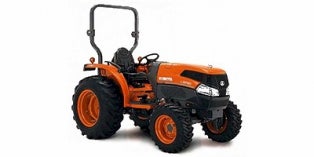

2013 Kubota Grand L40 3240 DT 4WD

2013 Kubota Grand L40 3240 DT 4WD Specifications

Tractor Insurance Get an insurance quote
Model Type  Compact Utility
MSRP (US)  $19,948
Warranty   Months
Finance  Get a quote
hide Identification:
Family Name  L
Generic Type  Compact Utility
Manufacturer Country  Japan
Revision Status  Carryover
Competitor Code  TRC13CG0000
IsEmbargoed  No
IsWIP  No
IsPrelim  No
IsCurrent  No
Historical ID  144764
Parent Company  Kubota Corporation
Display Name  Grand L40 3240 DT 4WD
hide Engine:
Cylinders  3
Horsepower  34 / 25.4
Horsepower RPM  2700
Cooling  Liquid
Bore  87 / 3.4
Stroke  92.4 / 3.6
Displacement  1.6
Fuel Type  Diesel
Engine Model Code  D1703
Aspiration  Natural
Carburetion Type  Fuel Injected
hide Transmission:
Transmission Type  Synchro-Shift
Number Of Speeds  8 / 8
Clutch Type  Dry
Number of Ranges  2
hide Hydraulic System:
Hydraulic Type  Open Center
Pump Capacity  13.2 / 50.1
Steering Pump Output  4.9 / 18.6
Implement Pump Output  8.3 / 31.5
Number of Standard Remote Valves  1
Number of Optional Remote Valves  3
Rear 3-Point Hitch Category  Category 1
Rear 3-Point Hitch Lift Capacity  2646 / 1200.2
hide Pto:
PTO Type  Independent
PTO Horsepower  26.5 / 19.8
PTO Location  Rear
Rear PTO RPM  540
hide Technical Specifications:
Length  9.58
Width  59.8 / 1520
Height  94 / 2390
Wheelbase  71.1 / 1805
Turning Radius  2.7
Ground Clearance  14 / 355
Front Tread Width  45.5 / 1155
Rear Tread Width  47.2 / 1200
Length (ft/ft)  9
Length (ft/in)  7
Max Front Tread Width  45.5 / 1155
Max Rear Tread Width  58.3 / 1480
Dry Weight  3252 / 1475
Fuel Capacity  11.6 / 44
hide Wheels & Tires:
Wheels Composition  Steel
Front Tire Width  7.2
Front Wheel Diameter  16
Rear Tire Width  12.4
Rear Wheel Diameter  24
Front Tire  7.2 - 16 RI Goodyear Power Torque
Rear Tire  12.4 - 24 R1 Firestone Super All Traction
Tread Type  Agricultural
hide Brakes:
Front Brake Type  Wet Disc
Rear Brake Type  Wet Disc
hide Instrumentation:
Tachometer  Standard
Hour Meter  Standard
Fuel Level Warning Type  Gauge
hide Drive Line:
Driveline Type  4X4
Differential Lock  Standard
hide Steering:
Steering Type  Power
hide Exterior:
Platform Layout  Open
ROPS  Standard
Headlights  Standard
