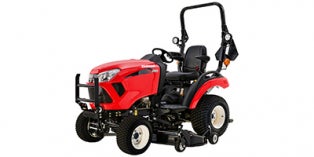

2022 Yanmar SA Series SA221
 |
23 |
of 84 Compact Utility |
|
 |
- MSRP: $13,063
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2022 Yanmar SA Series SA221 Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Compact Utility |
| MSRP (US) | $13,063 |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | SA Series |
| Generic Type | Compact Utility |
| Manufacturer Country | Japan |
| Major Revision Year | 2014 |
| Revision Status | Carryover |
| Competitor Code | TRC22CA0000 |
| Introduction Year | 2014 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | Yes |
| Historical ID | 356397 |
| Parent Company | Yanmar America Corporation |
| Display Name | SA Series SA221 |
|
Engine: |
|
| Engine Brand Name | Yanmar |
| Cylinders | 3 |
| Horsepower | 21.5 / 16 |
| Horsepower RPM | 3200 |
| Torque | 39.4 / 53.5 |
| Cooling | Liquid |
| Bore | 74 / 2.92 |
| Stroke | 77 / 3.03 |
| Displacement | 1 |
| Fuel Type | Diesel |
| Engine Model Code | 3TNM74F |
| Aspiration | Natural |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Hydrostatic |
| Maximum Forward Speed | 8.6 / 13.8 |
| Clutch Type | Not Applicable |
| Number of Ranges | 1 |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| System Pressure | 1891 / 130 |
| Pump Capacity | 8 / 30.3 |
| Steering Pump Output | 3.7 / 14.1 |
| Implement Pump Output | 4.3 / 16.3 |
| Rear 3-Point Hitch Category | Category 1 |
| Rear 3-Point Hitch Lift Capacity | 660 / 300 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 15.6 / 11.6 |
| PTO Location | Rear / Mid |
| Rear PTO RPM | 554 |
| Mid PTO RPM | 2057 |
|
Technical Specifications: |
|
| Length | 8.51 |
| Width | 47.3 / 1200 |
| Height | 82.3 / 2090 |
| Wheelbase | 57.9 / 1400 |
| Turning Radius | 2.4 |
| Ground Clearance | 6.4 / 163 |
| Front Tread Width | 35.2 / 894 |
| Rear Tread Width | 35.2 / 894 |
| Length (ft/ft) | 8 |
| Length (ft/in) | 6.1 |
| Dry Weight | 1537 / 697 |
| Fuel Capacity | 6.1 / 23 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Diameter | 18 |
| Rear Tire Diameter | 26 |
| Front Tire Width | 8.5 |
| Front Wheel Diameter | 10 |
| Rear Tire Width | 12 |
| Rear Wheel Diameter | 12 |
| Front Tire | 18 x 8.50 - 10 |
| Rear Tire | 26 x 12.0 - 12 |
| Tread Type | Industrial |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X4 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
|
