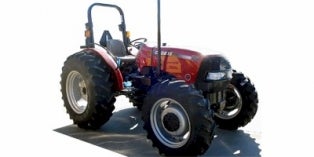

2011 Case IH Farmall® A-Series 75A 4WD
 |
34 |
of 243 Utility |
|
 |
- MSRP: TBA
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2011 Case IH Farmall® A-Series 75A 4WD Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | TBA |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | Farmall |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Revision Status | Carryover |
| Competitor Code | TRC11UQ0000 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | No |
| Historical ID | 72737 |
| Parent Company | CNH Global |
| Display Name | Farmall® A-Series 75A 4WD |
|
Engine: |
|
| Cylinders | 4 |
| Horsepower | 75 / 56 |
| Horsepower RPM | 2500 |
| Cooling | Liquid |
| Displacement | 3.2 |
| Fuel Type | Diesel |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Synchro-Shift |
| Number Of Speeds | 8 / 2 |
| Clutch Type | Dry |
| Number of Ranges | 2 |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 18.7 / 71.3 |
| Steering Pump Output | 8.5 / 32 |
| Implement Pump Output | 10.4 / 39.3 |
| Number of Standard Remote Valves | 1 |
| Number of Optional Remote Valves | 1 |
| Rear 3-Point Hitch Category | Category 1 / 2 |
| Rear 3-Point Hitch Lift Capacity | 2954 / 1340 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 66 / 49 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 11.63 |
| Width | 78.4 / 1990 |
| Height | 96.9 / 2460 |
| Length (ft/ft) | 11 |
| Length (ft/in) | 7.6 |
| Dry Weight | 5688 / 2580 |
| Fuel Capacity | 16.4 / 62 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Diameter | 24 |
| Rear Tire Diameter | 30 |
| Front Tire Width | 11.2 |
| Rear Tire Width | 16.9 |
| Front Tire | 11.2 x 24 |
| Rear Tire | 16.9 x 30 |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X4 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
|
Heater & Cooler: |
|
| Air Conditioning | Standard |
| Heater | Standard |
