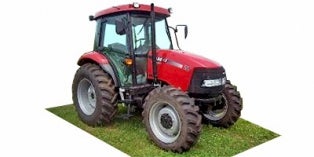

2011 Case IH Farmall® 70 2WD with Cab
 |
17 |
of 243 Utility |
|
 |
- MSRP: TBA
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2011 Case IH Farmall® 70 2WD with Cab Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | TBA |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | Farmall |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Revision Status | Carryover |
| Competitor Code | TRC11UG0000 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | No |
| Historical ID | 72331 |
| Parent Company | CNH Global |
| Display Name | Farmall® 70 2WD with Cab |
|
Engine: |
|
| Engine Brand Name | Case IH |
| Cylinders | 4 |
| Horsepower | 65 / 48.5 |
| Horsepower RPM | 2500 |
| Cooling | Liquid |
| Bore | 99 / 3.9 |
| Stroke | 104 / 4.094 |
| Displacement | 3.9 |
| Fuel Type | Diesel |
| Engine Model Code | FPT F32 |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Synchro-Shift |
| Number Of Speeds | 12 / 12 |
| Maximum Forward Speed | 19 / 30 |
| Clutch Type | Dry |
| Number of Ranges | 3 |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 21.7 / 82.1 |
| Steering Pump Output | 8.1 / 30.7 |
| Implement Pump Output | 13.6 / 51.5 |
| Number of Standard Remote Valves | 1 |
| Number of Optional Remote Valves | 2 |
| Rear 3-Point Hitch Category | Category 2 |
| Rear 3-Point Hitch Lift Capacity | 4010 / 1819 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 52 / 38.8 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Height | 100 / 2540 |
| Wheelbase | 86 / 2184 |
| Turning Radius | 3.8 |
| Front Tread Width | 55.5 / 1409.7 |
| Rear Tread Width | 56.1 / 1424.9 |
| Max Front Tread Width | 75.2 / 1910.1 |
| Max Rear Tread Width | 75.8 / 1925.3 |
| Dry Weight | 5813 / 2636.8 |
| Fuel Capacity | 23.8 / 90.1 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 7.5 |
| Front Wheel Diameter | 16 |
| Rear Tire Width | 14.9 |
| Rear Wheel Diameter | 28 |
| Front Tire | 7.5 - 16 |
| Rear Tire | 14.9 - 28 |
| Tread Type | Industrial |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X2 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Full Cab |
| ROPS | Standard |
| Headlights | Standard |
|
Heater & Cooler: |
|
| Air Conditioning | Standard |
| Heater | Standard |
