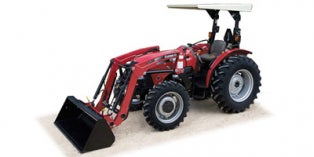

2020 Case IH Farmall® Utility A-Series 70A 2WD
 |
58 |
of 251 Utility |
|
 |
- MSRP: $29,500
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2020 Case IH Farmall® Utility A-Series 70A 2WD Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | $29,500 |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | Farmall |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Major Revision Year | 2015 |
| Revision Status | Carryover |
| Competitor Code | TRC20UM0000 |
| Introduction Year | 2015 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | Yes |
| Historical ID | 310240 |
| Parent Company | CNH Global |
| Display Name | Farmall® Utility A Series 70A 2WD |
|
Engine: |
|
| Engine Brand Name | Case IH |
| Cylinders | 3 |
| Horsepower | 70 / 52 |
| Horsepower RPM | 2700 |
| Cooling | Liquid |
| Bore | 94 / 3.7 |
| Stroke | 107 / 4.2 |
| Displacement | 2.23 |
| Fuel Type | Diesel |
| Engine Model Code | 2.2L FTP |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Synchro-Shift |
| Number Of Speeds | 8 / 8 |
| Clutch Type | Dry |
| Number of Ranges | 2 |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 17.4 / 66 |
| Steering Pump Output | 5.5 / 21 |
| Implement Pump Output | 11.9 / 45 |
| Number of Standard Remote Valves | 1 |
| Number of Optional Remote Valves | 1 |
| Rear 3-Point Hitch Category | Category 2 |
| Rear 3-Point Hitch Lift Capacity | 2701 / 1225 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 62 / 46 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 10.79 |
| Width | 67.5 / 1714 |
| Height | 97.4 / 2473 |
| Wheelbase | 96.4 / 2450 |
| Turning Radius | 3.4 |
| Length (ft/ft) | 10 |
| Length (ft/in) | 9.5 |
| Dry Weight | 4442 / 2015 |
| Fuel Capacity | 13 / 49 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 7.5 |
| Front Wheel Diameter | 16 |
| Rear Tire Width | 14.9 |
| Rear Wheel Diameter | 28 |
| Front Tire | 7.5 x 16 |
| Rear Tire | 14.9 x 28 |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X2 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
