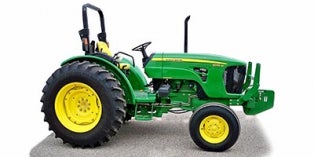

2010 John Deere 5000 Series 5065M (2WD)
 |
97 |
of 267 Utility |
|
 |
- MSRP: $32,960
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2010 John Deere 5000 Series 5065M (2WD) Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | $32,960 |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | 5000 Series |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Revision Status | Carryover |
| Competitor Code | TRC10UF0000 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | No |
| Parent Company | Deere & Company |
| Display Name | 5065M (2WD) |
|
Engine: |
|
| Engine Brand Name | John Deere |
| Cylinders | 5 |
| Horsepower | 65 / 48.4 |
| Horsepower RPM | 2200 |
| Cooling | Liquid |
| Bore | 86 / 3.39 |
| Stroke | 105 / 4.13 |
| Displacement | 3 |
| Compression Ratio | 19.1:1 |
| Fuel Type | Diesel |
| Engine Model Code | PowerTech 5030 |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Synchro-Shift |
| Transmission Brand | SyncReverser™ |
| Number Of Speeds | 16 / 16 |
| Clutch Type | Wet |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| System Pressure | 2900 / 199.9 |
| Pump Capacity | 20.9 / 79.1 |
| Steering Pump Output | 6.3 / 23.8 |
| Implement Pump Output | 14.6 / 55.3 |
| Number of Standard Remote Valves | 0 |
| Number of Optional Remote Valves | 3 |
| Rear 3-Point Hitch Category | Category 1 / 2 |
| Rear 3-Point Hitch Lift Capacity | 3595 / 1631 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 50 / 37.3 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 12.5 |
| Height | 96.5 / 2451 |
| Wheelbase | 85.6 / 2175 |
| Turning Radius | 3.5 |
| Ground Clearance | 18.8 / 477.5 |
| Front Tread Width | 57.6 / 1463 |
| Rear Tread Width | 53.1 / 1348 |
| Length (ft/ft) | 12 |
| Length (ft/in) | 6 |
| Max Front Tread Width | 82.6 / 2098 |
| Max Rear Tread Width | 80.9 / 2054.9 |
| Dry Weight | 6000 / 2721 |
| Fuel Capacity | 21 / 80 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 7.5 |
| Front Wheel Diameter | 16 |
| Rear Tire Width | 16.9 |
| Rear Wheel Diameter | 30 |
| Front Tire | 7.5 - 16 |
| Rear Tire | 16.9 - 30 |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X2 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
