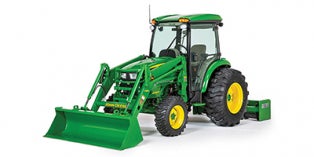

2017 John Deere 4 Family 4066R
 |
239 |
of 244 Utility |
|
 |
- MSRP: $38,158
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2017 John Deere 4 Family 4066R Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | $38,158 |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | 4 Family |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Major Revision Year | 2014 |
| Revision Status | Carryover |
| Competitor Code | TRC17UG0000 |
| Introduction Year | 2014 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | Yes |
| Historical ID | 207521 |
| Parent Company | Deere & Company |
| Display Name | 4066R |
|
Engine: |
|
| Engine Brand Name | Yanmar |
| Cylinders | 4 |
| Horsepower | 65.9 / 48.5 |
| Horsepower RPM | 2600 |
| Cooling | Liquid |
| Bore | 86 / 3.4 |
| Stroke | 90 / 3.54 |
| Displacement | 2.1 |
| Compression Ratio | 19.1:1 |
| Fuel Type | Diesel |
| Engine Model Code | 4TNV86CHT-MJT |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Manual |
| Transmission Brand | PowrReverser™ |
| Number Of Speeds | 12 / 12 |
| Maximum Forward Speed | 20.3 / 32.7 |
| Clutch Type | Wet |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| System Pressure | 2500 / 172.4 |
| Pump Capacity | 15.9 / 60.2 |
| Steering Pump Output | 5.7 / 21.5 |
| Implement Pump Output | 10.2 / 38.7 |
| Number of Standard Remote Valves | 0 |
| Number of Optional Remote Valves | 3 |
| Rear 3-Point Hitch Category | Category 1 |
| Rear 3-Point Hitch Lift Capacity | 2500 / 1135 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 54 / 40.2 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Wheelbase | 73 / 1855 |
| Turning Radius | 2.8 |
| Ground Clearance | 15.6 / 396.2 |
| Front Tread Width | 58.3 / 1481 |
| Rear Tread Width | 54 / 1372 |
| Max Front Tread Width | 58.3 / 1481 |
| Dry Weight | 3770 / 1710 |
| Fuel Capacity | 13 / 50 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 8 |
| Front Wheel Diameter | 16 |
| Rear Tire Width | 14.9 |
| Rear Wheel Diameter | 24 |
| Front Tire | 8 - 16 |
| Rear Tire | 14.9 - 24 |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X4 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
|
Convenience: |
|
| Cruise Control | Standard |
