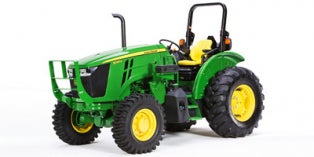

2017 John Deere 5E Series 5085E
 |
23 |
of 244 Utility |
|
 |
- MSRP: TBA
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2017 John Deere 5E Series 5085E Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | TBA |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | 5 Series |
| Generic Type | Utility |
| Manufacturer Country | USA |
| Major Revision Year | 2014 |
| Revision Status | Carryover |
| Competitor Code | TRC17US0000 |
| Introduction Year | 2014 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | Yes |
| Historical ID | 207631 |
| Parent Company | Deere & Company |
| Display Name | 5085E |
|
Engine: |
|
| Engine Brand Name | John Deere |
| Cylinders | 4 |
| Horsepower | 85 / 62.5 |
| Horsepower RPM | 2400 |
| Cooling | Liquid |
| Bore | 105.92 / 4.17 |
| Stroke | 127 / 5 |
| Displacement | 4.5 |
| Compression Ratio | 19:1 |
| Fuel Type | Diesel |
| Engine Model Code | PowerTech 4045 |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Power Synchro-Shift |
| Transmission Brand | PowrReverser™ |
| Number Of Speeds | 12 / 12 |
| Clutch Type | Wet |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 22.5 / 85.1 |
| Steering Pump Output | 6.6 / 25 |
| Implement Pump Output | 15.9 / 60.1 |
| Number of Standard Remote Valves | 2 |
| Number of Optional Remote Valves | 3 |
| Rear 3-Point Hitch Category | Category 2 |
| Rear 3-Point Hitch Lift Capacity | 3213 / 1457 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 70 / 52.2 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Wheelbase | 90.6 / 2300 |
| Turning Radius | 3.54 |
| Ground Clearance | 15.2 / 386 |
| Front Tread Width | 52.8 / 1340 |
| Dry Weight | 7055 / 3200 |
| Fuel Capacity | 25 / 94.6 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 11.2 |
| Front Wheel Diameter | 24 |
| Rear Tire Width | 16.9 |
| Rear Wheel Diameter | 30 |
| Front Tire | 11.2 - 24 |
| Rear Tire | 16.9 -30 |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X4 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
