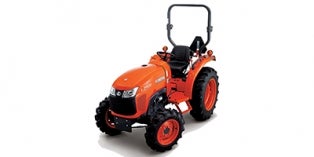

2015 Kubota L 2501 2WD
 |
3 |
of 102 Compact Utility |
|
 |
- MSRP: TBA
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2015 Kubota L 2501 2WD Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Compact Utility |
| MSRP (US) | TBA |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | L |
| Generic Type | Compact Utility |
| Manufacturer Country | Japan |
| Major Revision Year | 2015 |
| Revision Status | New |
| Competitor Code | TRC15CC0000 |
| Introduction Year | 2015 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | No |
| Parent Company | Kubota Corporation |
| Display Name | L Series 2501 2WD Gear Drive |
|
Engine: |
|
| Cylinders | 3 |
| Horsepower | 24.8 / 18.5 |
| Horsepower RPM | 2200 |
| Cooling | Liquid |
| Bore | 87 / 3.4 |
| Stroke | 92.4 / 3.6 |
| Displacement | 1.6 |
| Fuel Type | Diesel |
| Engine Model Code | D1703-M-DI-E4-LB2 |
| Aspiration | Natural |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Manual Sliding Gear |
| Number Of Speeds | 8 / 4 |
| Maximum Forward Speed | 10.7 / 17.2 |
| Clutch Type | Dry |
| Number of Ranges | 2 |
|
Hydraulic System: |
|
| Hydraulic Type | Open Center |
| Pump Capacity | 8.3 / 31.4 |
| Steering Pump Output | 3.1 / 11.7 |
| Implement Pump Output | 5.2 / 19.7 |
| Rear 3-Point Hitch Category | Category 1 |
| Rear 3-Point Hitch Lift Capacity | 1918 / 870 |
|
Pto: |
|
| PTO Type | Transmission Driven |
| PTO Horsepower | 20.5 / 15.3 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 9.22 |
| Width | 55.1 / 1400 |
| Height | 91.7 / 2330 |
| Wheelbase | 63.3 / 1610 |
| Turning Radius | 2.4 |
| Ground Clearance | 13.6 / 345 |
| Front Tread Width | 41.3 / 1050 |
| Rear Tread Width | 43.8 / 1115 |
| Length (ft/ft) | 9 |
| Length (ft/in) | 2.6 |
| Max Front Tread Width | 41.3 / 1050 |
| Max Rear Tread Width | 50.8 / 1290 |
| Dry Weight | 2425 / 1100 |
| Fuel Capacity | 10 / 38 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 5 |
| Front Wheel Diameter | 15 |
| Rear Tire Width | 11.2 |
| Rear Wheel Diameter | 24 |
| Front Tire | 5.00-15 F2 Goodyear Triple Rib |
| Rear Tire | 11.2 - 24 R1 Titan Hi Power Lug |
| Tread Type | Agricultural |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X2 |
| Differential Lock | Standard |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
