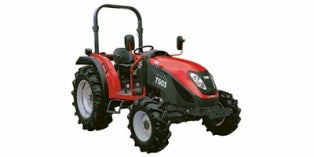

2010 TYM T 503
 |
265 |
of 267 Utility |
|
 |
- MSRP: TBA
- Financing: Tractor Loans
- Insurance: Request an insurance quote
2010 TYM T 503 Specifications
Tractor Insurance |
Get an insurance quote |
|---|---|
| Model Type | Utility |
| MSRP (US) | TBA |
| Warranty | Months |
| Finance | Get a quote |
Identification: |
|
| Family Name | T |
| Generic Type | Utility |
| Manufacturer Country | South Korea |
| Revision Status | Carryover |
| Competitor Code | TRC10UB0000 |
| IsEmbargoed | No |
| IsWIP | No |
| IsPrelim | No |
| IsCurrent | No |
| Parent Company | TYM-USA, Inc. |
| Display Name | T 503 |
|
Engine: |
|
| Engine Brand Name | Caterpillar® |
| Cylinders | 4 |
| Horsepower | 50.7 / 37.8 |
| Horsepower RPM | 2800 |
| Cooling | Liquid |
| Bore | 84 / 3.31 |
| Stroke | 100 / 3.94 |
| Displacement | 2.2 |
| Compression Ratio | 23.3:1 |
| Fuel Type | Diesel |
| Engine Model Code | C2.2 |
| Aspiration | Turbocharged |
| Carburetion Type | Fuel Injected |
|
Transmission: |
|
| Transmission Type | Synchro-Shift |
| Number Of Speeds | 16 / 16 |
| Maximum Forward Speed | 20.7 / 33.4 |
| Clutch Type | Dry |
|
Hydraulic System: |
|
| Pump Capacity | 14.5 / 55.1 |
| Steering Pump Output | 5 / 19 |
| Implement Pump Output | 9.5 / 36.1 |
| Number of Standard Remote Valves | 2 |
| Number of Optional Remote Valves | 0 |
| Rear 3-Point Hitch Category | Category 1 |
| Rear 3-Point Hitch Lift Capacity | 2105 / 955 |
|
Pto: |
|
| PTO Type | Independent |
| PTO Horsepower | 39.8 / 29.3 |
| PTO Location | Rear |
| Rear PTO RPM | 540 |
|
Technical Specifications: |
|
| Length | 11.78 |
| Width | 62.6 / 1591 |
| Height | 101.9 / 2590 |
| Wheelbase | 76.2 / 1935 |
| Turning Radius | 3.4 |
| Ground Clearance | 13.8 / 350 |
| Length (ft/ft) | 11 |
| Length (ft/in) | 9.3 |
| Dry Weight | 4140 / 1878 |
| Fuel Capacity | 17 / 60 |
|
Wheels & Tires: |
|
| Wheels Composition | Steel |
| Front Tire Width | 12 |
| Front Wheel Diameter | 16.5 |
| Rear Tire Width | 17.5 |
| Rear Wheel Diameter | 24 |
| Front Tire | 12 x 16.5 |
| Rear Tire | 17.5 - 24 |
| Tread Type | Industrial |
|
Brakes: |
|
| Front Brake Type | Wet Disc |
| Rear Brake Type | Wet Disc |
|
Instrumentation: |
|
| Tachometer | Standard |
| Hour Meter | Standard |
| Fuel Level Warning Type | Gauge |
|
Drive Line: |
|
| Driveline Type | 4X4 |
| Differential Lock Location | Rear |
|
Steering: |
|
| Steering Type | Power |
|
Exterior: |
|
| Platform Layout | Open |
| ROPS | Standard |
| Headlights | Standard |
